The OF range delivers oil-free air wherever it is essential. These compressors produce high-quality clean air required to protect processes and products — from pharmaceutical manufacturing and food processing to electronics. Power ratings range from 20 to 220 HP, making them a flexible solution for a wide range of industrial applications.
The range also stands out in terms of energy efficiency and long service life. Variable-speed technology is integrated alongside other measures that improve efficiency and reduce operating costs. The rugged construction ensures durability and continuous productivity.
Thanks to variable-speed technology, the OF range delivers energy savings of up to 35% and significantly reduces operating costs.
Durability is built into the design: carefully selected components — high-quality compressor block bearings and a robust, enclosed fan-cooled motor — withstand even the most demanding conditions.
Certified Class 0 oil-free air guarantees contamination-free output and the highest level of protection for products and processes.
The Imperium inverter is designed for compressed-air applications, making the compressor less sensitive to dust and heat. The electronics are housed in an IP5X enclosure with a fan-cooled heatsink.
The gear-type oil pump is integrated into the main shaft. While the motor is running, it generates oil pressure that is supplied to the bearings; in the event of a power failure, the pump continues to operate as the motor rotates at a lower speed.

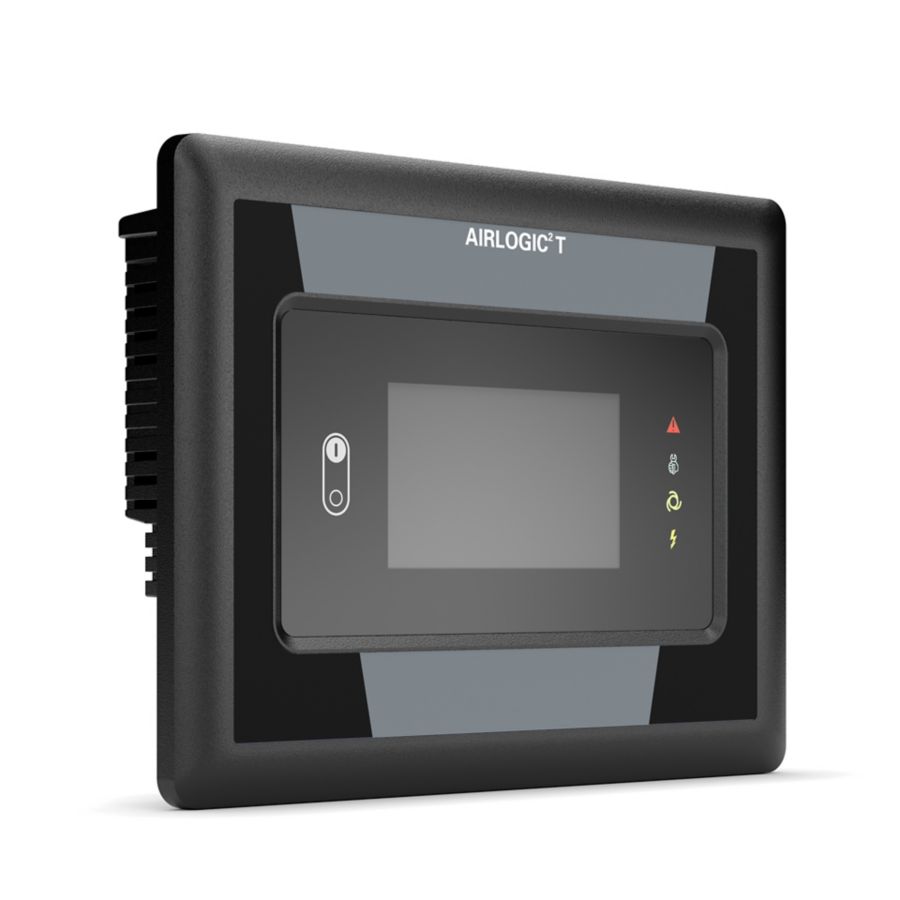

The Airlogic controller enables full monitoring and control. Data is analysed in the cloud, helping with service planning, fault prediction and assessment of machine condition.
Power from 15 to 160 kW, flow up to 23.3 m³/min, pressure up to 8.6 bar.
| Model | Motor power(kW) | Max. pressure(bar) | Delivery volume(m³/min) | Weight(kg) |
|---|---|---|---|---|
| OF20-7.5 | 15 | 7,5 | 2,3 | 984 |
| OF30-7.5 | 22 | 7,5 | 3,5 | 1024 |
| OF60-8.6 | 45 | 8,6 | 6,5 | 1341 |
| OF75-7.5 | 55 | 7,5 | 8,3 | 1980 |
| OF200-8.6 | 145 | 8,6 | 109 | 3050 |
| OF220V-8.6 | 160 | 8,6 | 23,3* | 3100 |
* Delivery volume at 4 bar. Manufacturer data from Worthington Creyssensac. See the brochures for the full specification.
